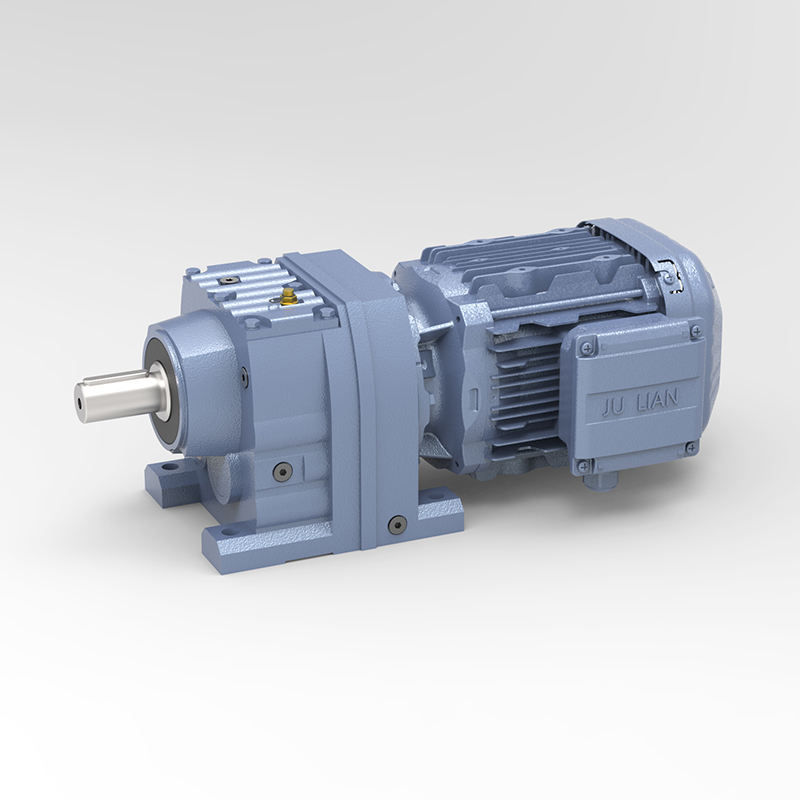

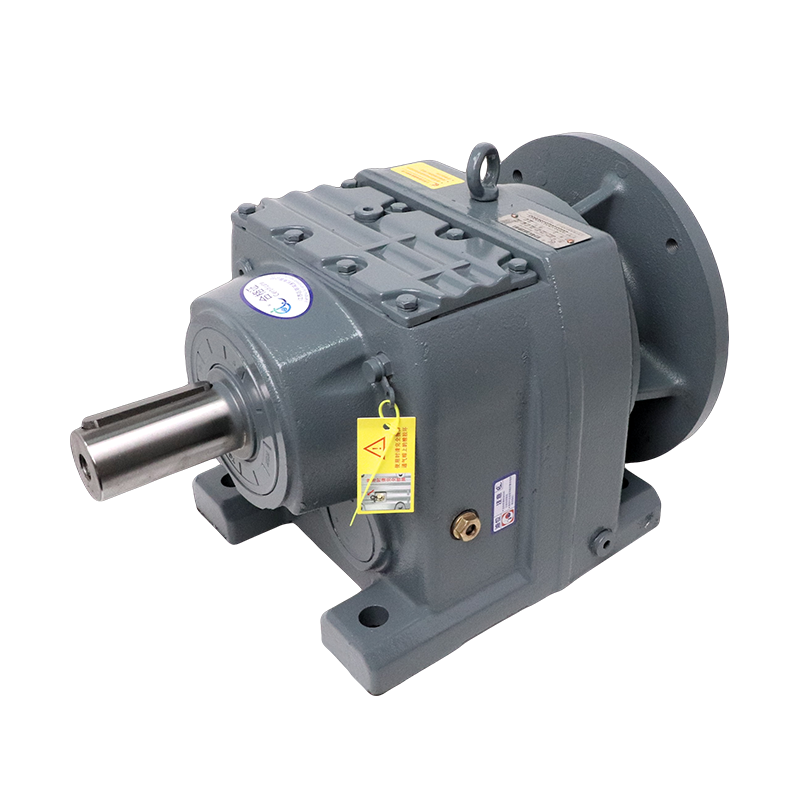

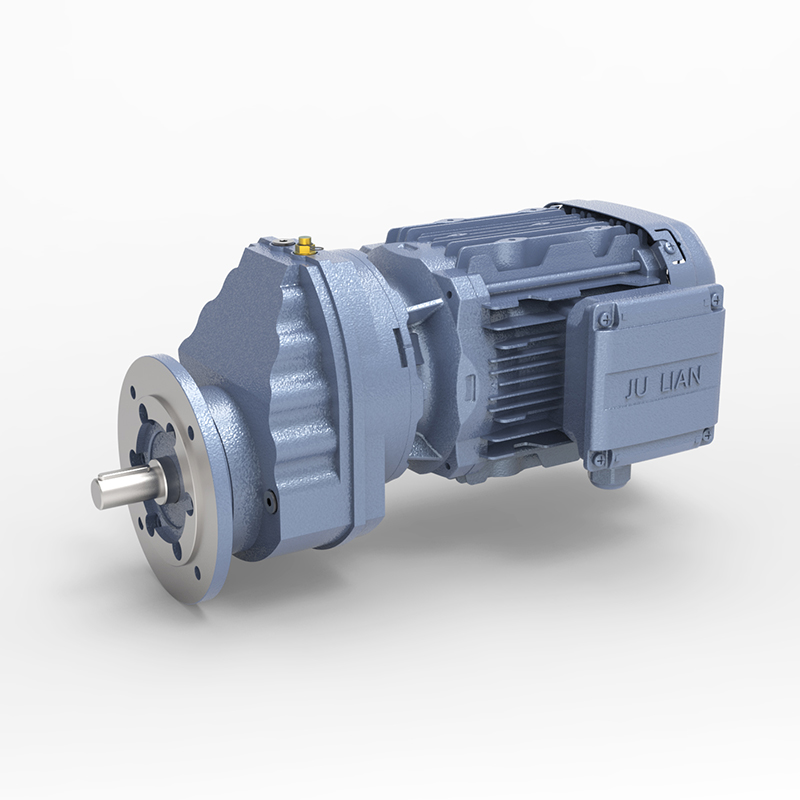

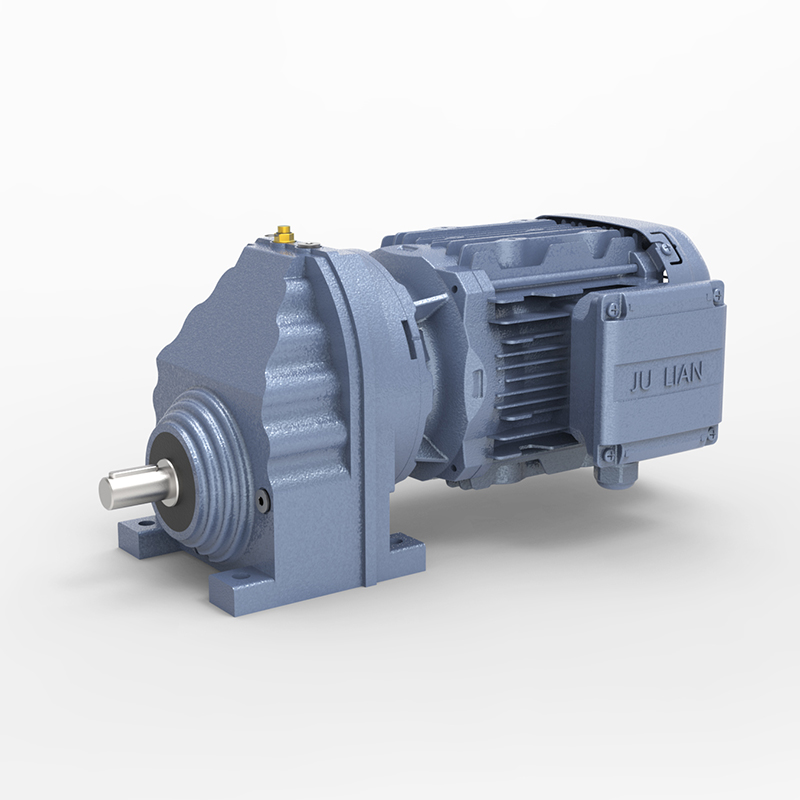

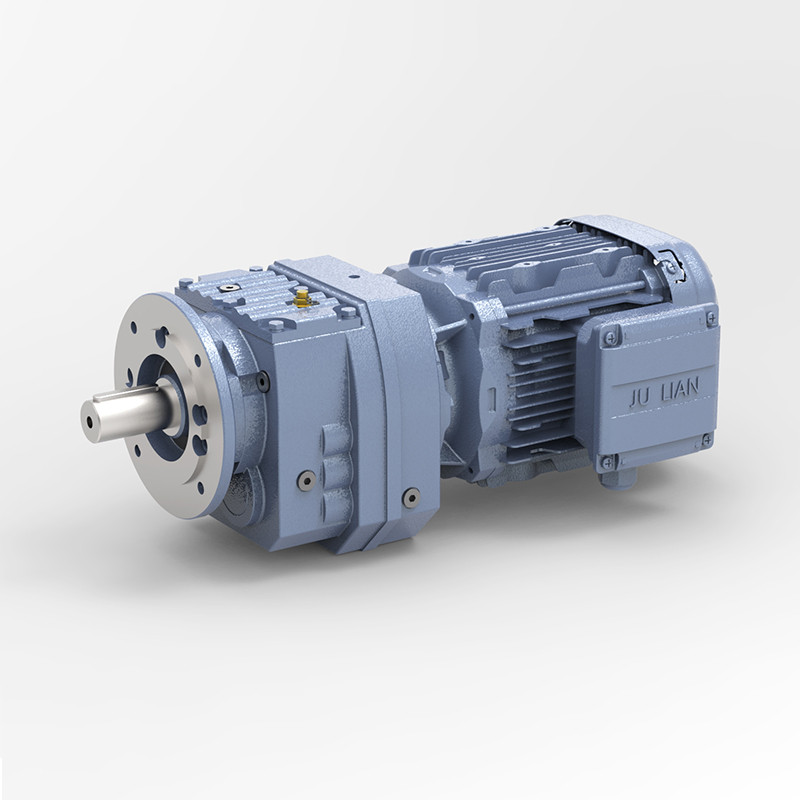

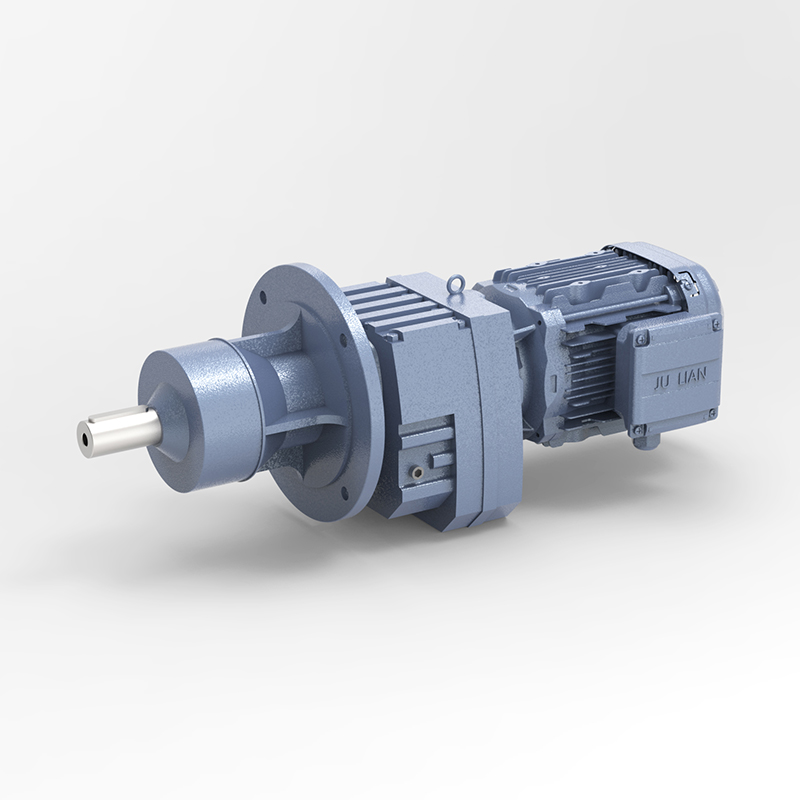

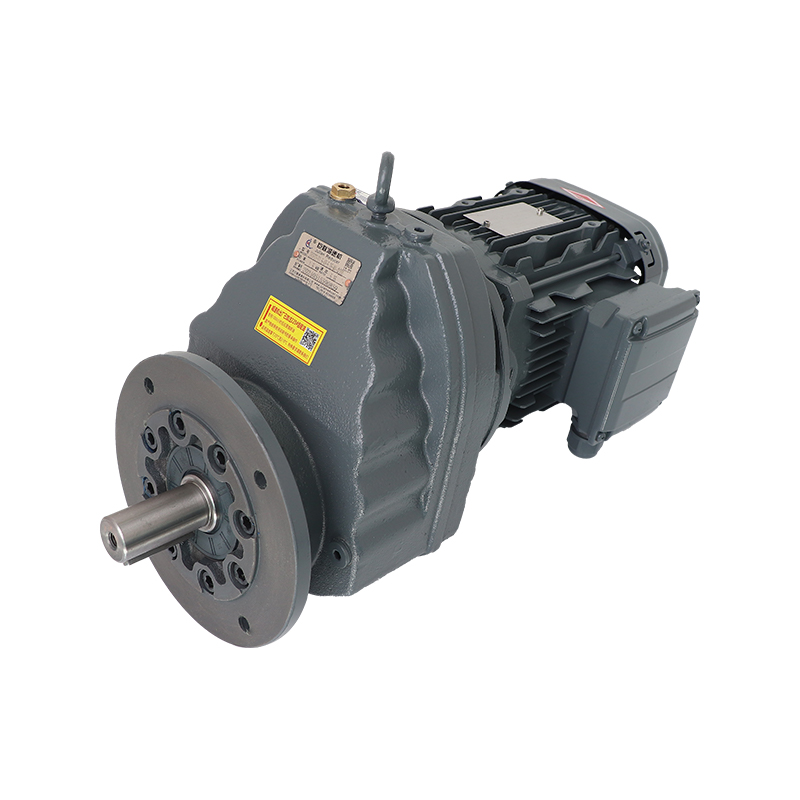

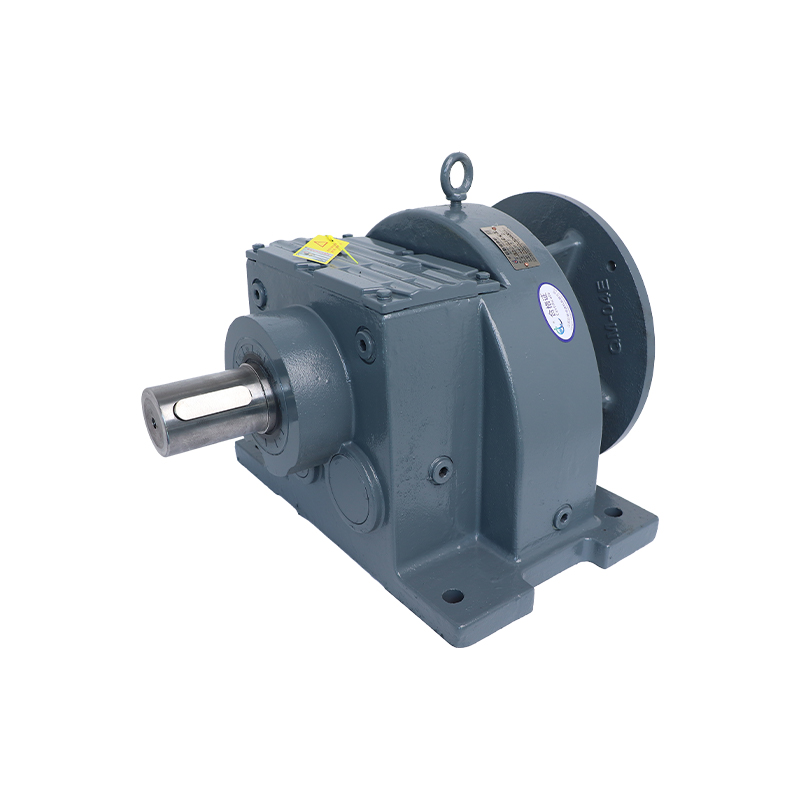

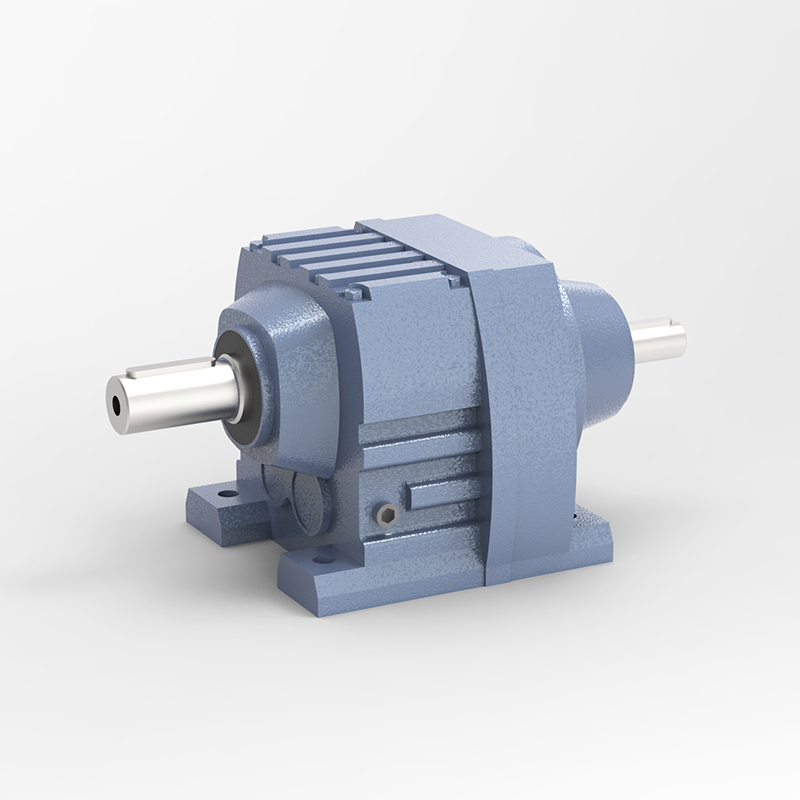

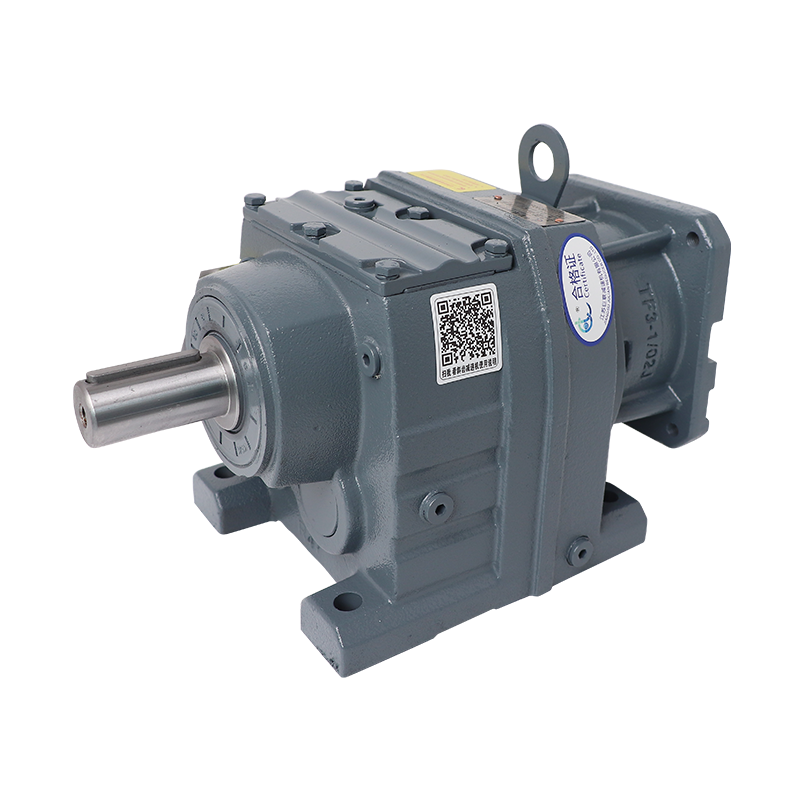

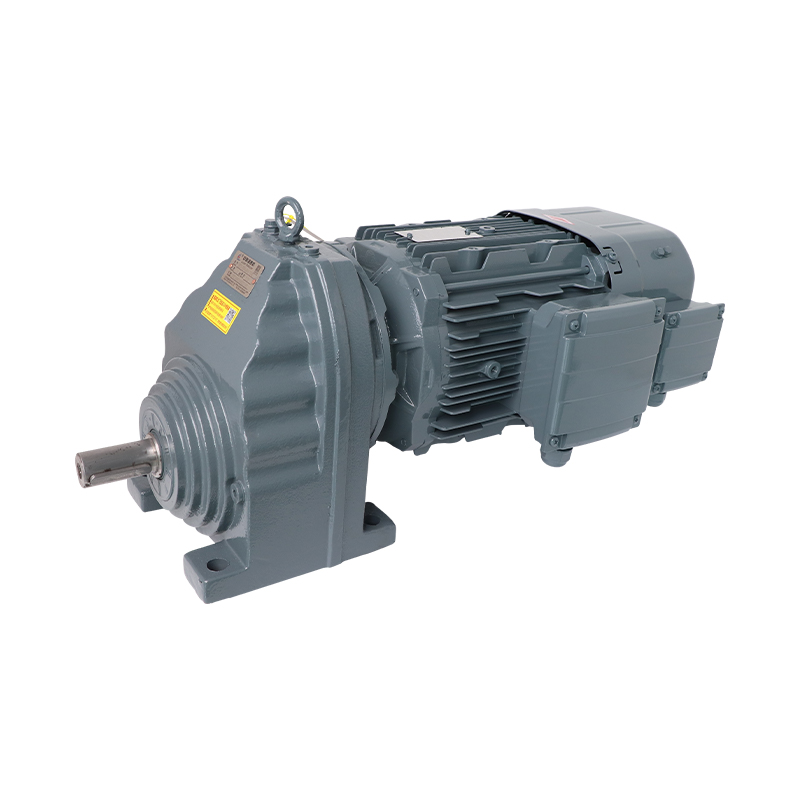

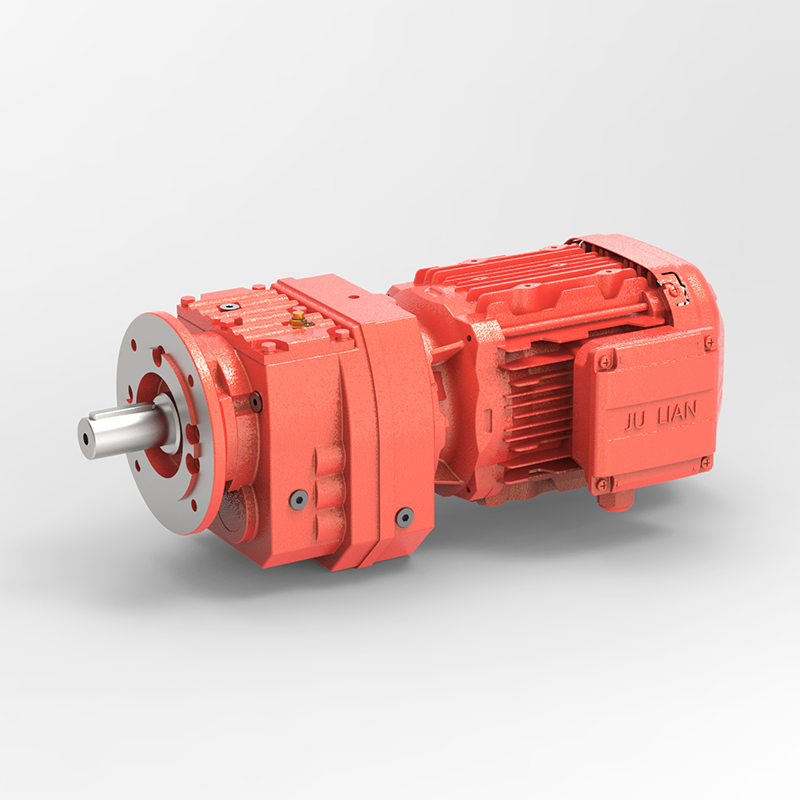

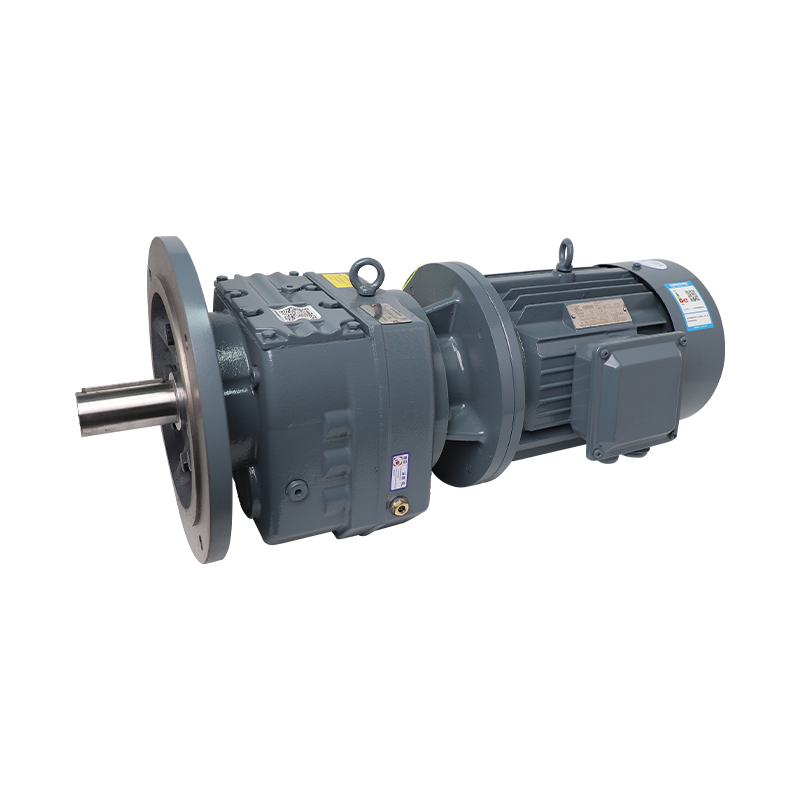

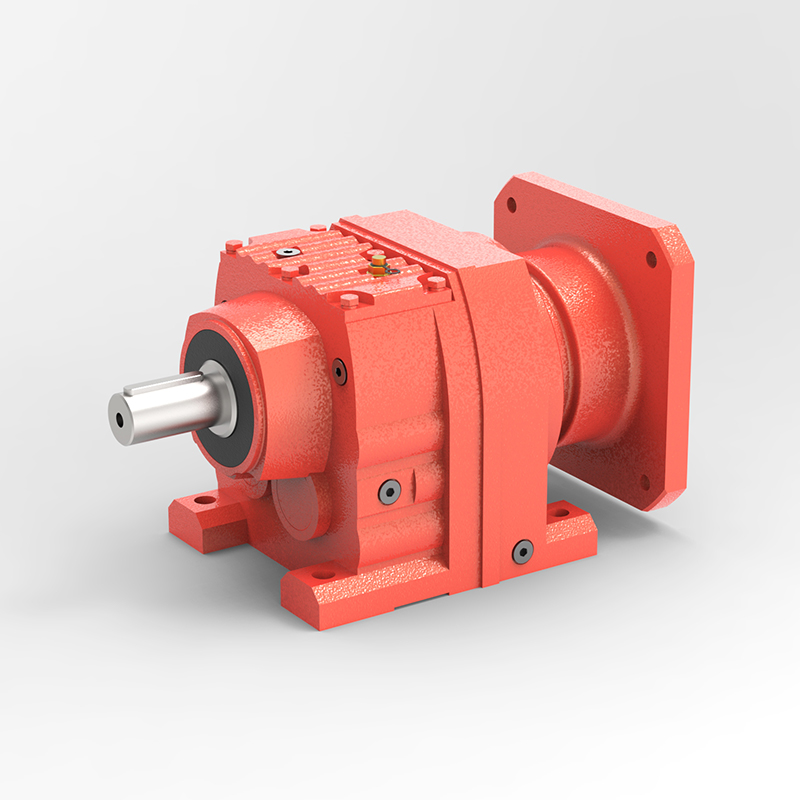

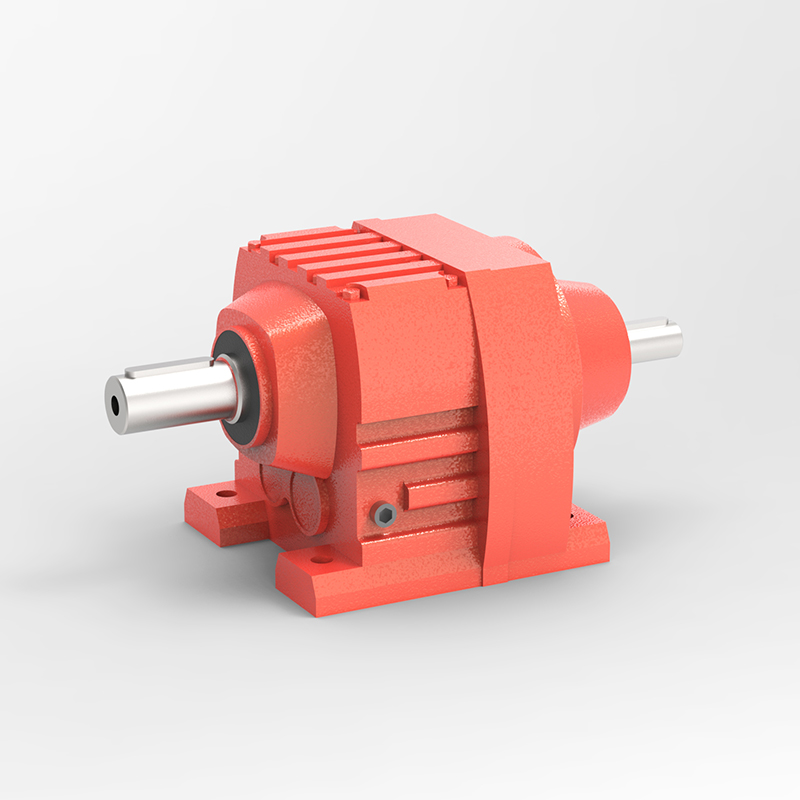

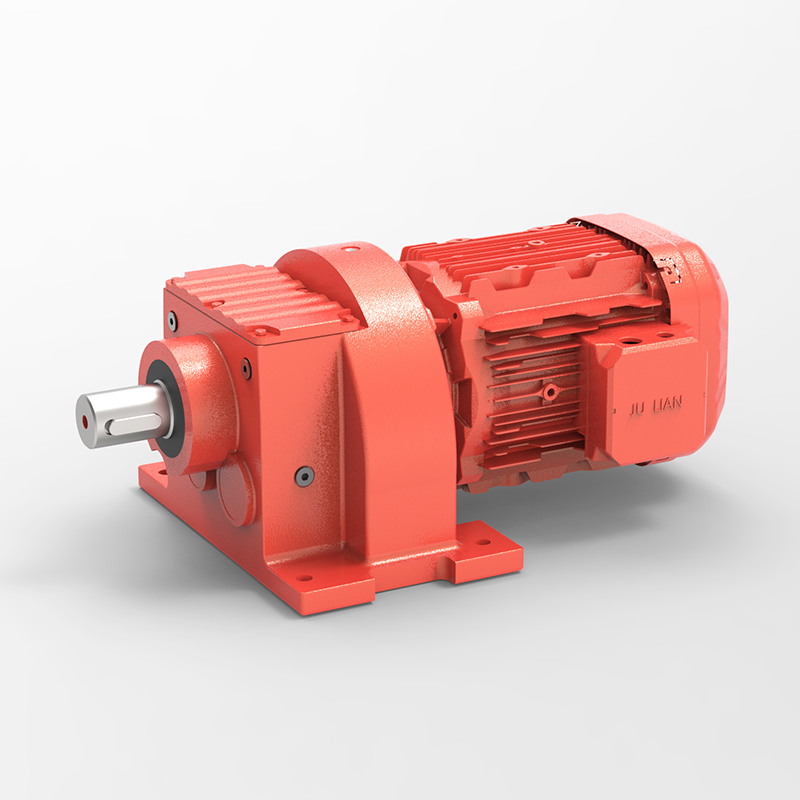

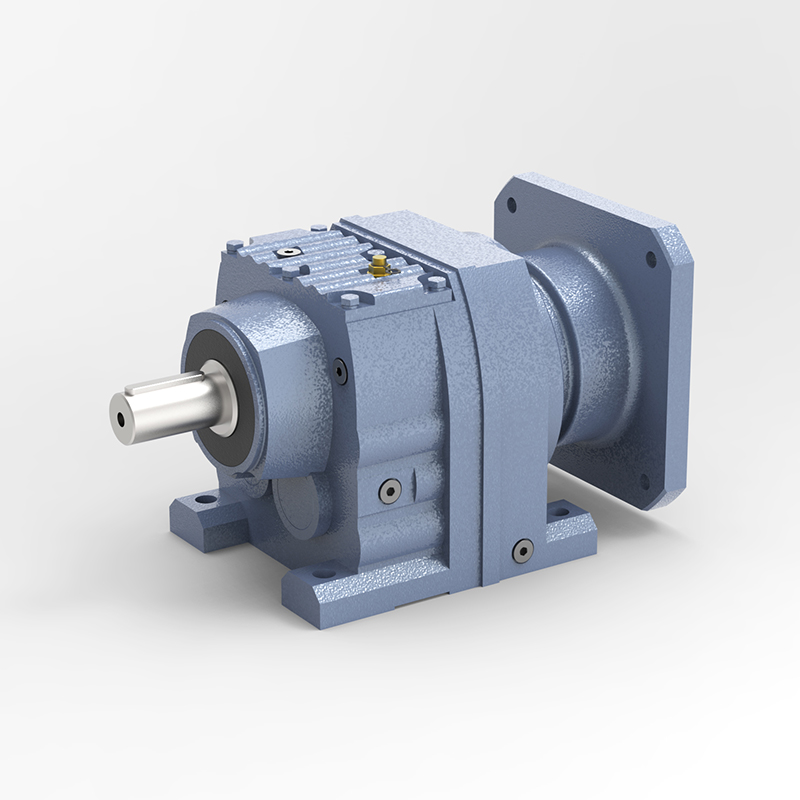

JR High Load-Bearing Capacity Helical Gear Reducer

The JR series helical gear hard tooth surface reducer is a reducer with strong versatility, good assembleability, and high load-bearing capacity. It has a fine transmission ratio, a wide range, high efficiency, small vibration, and allows high axial and radial loads. It can be combined with a variety of reducers to achieve larger transmission ratios and slower speeds.

Product specifications: R37/47/57/67/77/87/97/107/137/147/167/177

Transmission ratio: 3.83-289.74

Input power: 0.18-160KW

Output torque: UP TO 18000Nm

Output type: flange + solid shaft, foot + solid shaft, flange + hollow shaft, foot + hollow shaft, torque arm + hollow shaft

CONTACT US Jiangsu Julian Reducer Co., Ltd.
PREV: No previous article
NEXT:No next article
  • Features
  • Dimensional Description
  • Installation Dimensions
  • Details and Configuration
  • Business Information
  • Supplementary Matters
  • Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors or other kinds of input power. The same type of geared motor can be adapted to the optioned powers of motors.It is therefore easy to realize different solutions for varied requirements.
  • Ratio: Featured many closely divided ratios and a wide range of them. Very big final ratios can be obtained through combined units to reach extremely low output speeds.
  • Mounting Arrangement: No strict limitation to the mounting arrangement.

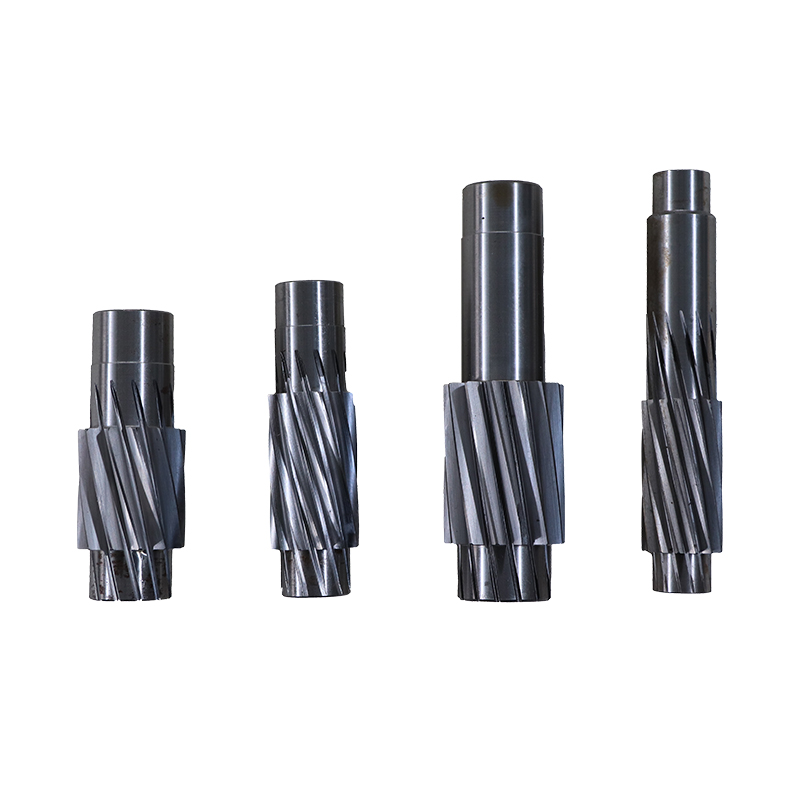

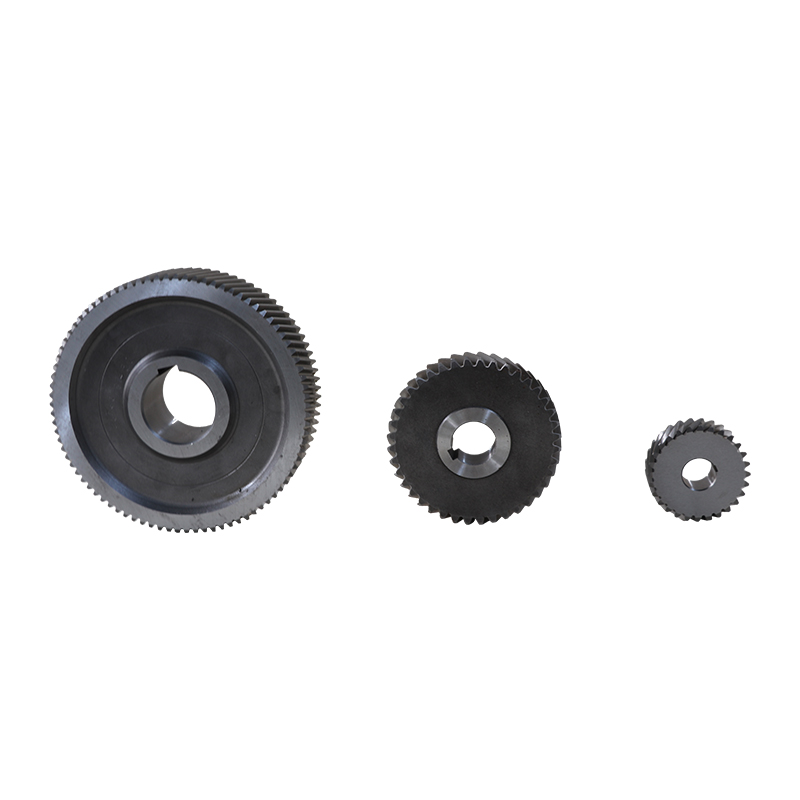

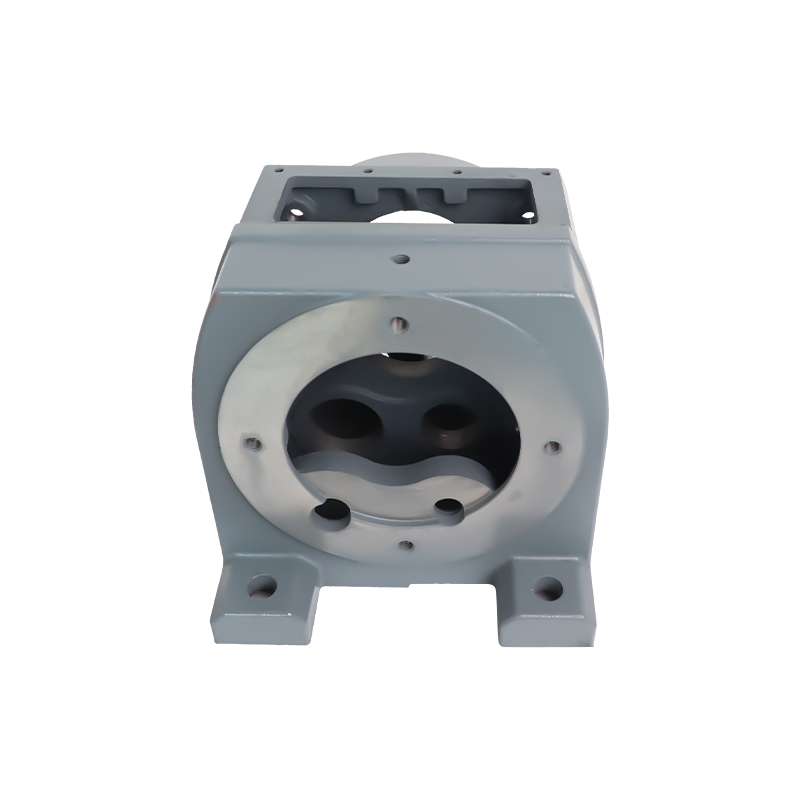

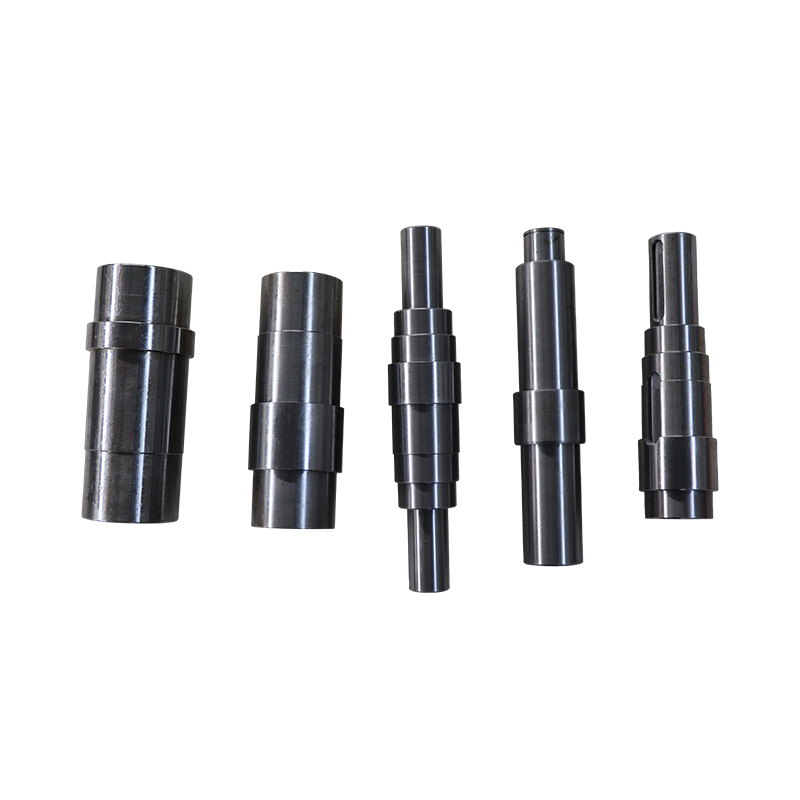

  • High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with a gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.
  • Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (except those easily disabled parts) can last as long as up to more than 25,000 hours. Easi-ly-disabled parts include lubricating oil, oil seals, and bearings.
  • Low Noise: All key components are finished by precise machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
  • High Efficiency: The efficiency of the gear unit can reach 95%, and The efficiency of the worm gear unit can reach 89%.
  • Large radial loading ability.
  • Axial load ability of up to 5% of radial load.

Recommended Products

KEEP IN TOUCH

SUBMIT
About
Jiangsu Julian Reducer Co., Ltd.
Jiangsu Julian Reducer Co., Ltd.

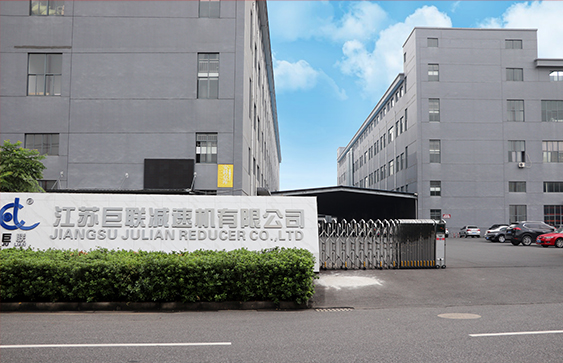

Jiangsu Julian Reducer Co., Ltd. was established in December 2014. It is a national high-tech enterprise with independent intellectual property rights that integrates R&D, design, production and processing, and technical services.
We are Custom JR Series Helical Gear Hard Tooth Surface Reducer Suppliers and China Helical Gear Hard Tooth Surface Reducer Factory. The main products are: R series helical gear reducer, F series parallel axis helical gear reducer, K series helical gear spiral bevel gear reducer, S series helical worm gear reducer, mixer, ZY series reducer, PV gearbox ,Cycloid reducer.
Widely used in: chemical reactor mixing equipment, papermaking equipment, conveying equipment, building materials equipment, environmental protection equipment, drying equipment, grain machine equipment, metallurgical equipment, textile equipment, rubber and plastic equipment, fluid equipment, etc.
Certificate Of Honor
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
News
JR Series Helical Gear Reducer Industry knowledge

What are the main application areas of JR spiral bevel gear reducers?

JR spiral bevel gear reducers are widely used in many industries and fields due to their excellent performance and reliable transmission characteristics. Here are some of the main application areas:

Automation equipment
In automated production lines, robots and robotic arms, JR spiral bevel gear reducers provide precise motion control and torque transmission.

Packaging machinery
This type of reducer is often used in packaging equipment such as packaging machines, labeling machines and filling machines to help achieve an efficient packaging process.

Conveying system
In various conveyors (such as belt conveyors, chain conveyors, etc.), JR spiral bevel gear reducers are used to reduce speed and increase output torque to meet the transportation needs of heavy objects.

Machine tool industry
In CNC machine tools and other mechanical processing equipment, reducers are used to improve processing accuracy and control feed speed.

Mining and metallurgical industry
In mining equipment (such as mining machines, conveyors) and metallurgical equipment, JR spiral bevel gear reducers can withstand heavy loads and provide stable power transmission.

Wind power generation
In wind turbines, spiral bevel gear reducers are used to reduce the speed and convert wind energy into electrical energy.

Elevators and lifting equipment
Used in elevators, lifting platforms and other vertical transportation equipment to ensure smooth and safe operation.

Paper and printing industry
In paper and printing machinery, reducers are used to control the conveying speed of paper and printing materials.

Agricultural machinery
In various agricultural machinery (such as tractors, seeders and harvesters), JR spiral bevel gear reducers help achieve efficient power transmission and operation.

Water treatment and pump equipment
In water pumps and sewage treatment equipment, reducers are used to increase water flow and pressure.
